Samsung UN50HU8550 4K TV profile

[atc98092]

Good day all!

I mentioned this in the Samsung forum, but while one person kindly offered some assistance, it didn't help so I thought I'd bring it here as well. I just purchased a new Samsung UN50HU8550 4K TV. Karnith offered a Samsung H profile he had created, but it didn't work. Currently, using the Generic profile, the TV seems to play virtually all my local files, regardless of container or codec. The problem with the generic profile is a) the images of the movie art are distorted, b) DVD rips have some stutter to the video (audio is fine, as are Blu-Ray rips) and c) online sources will not play (Crackle is the only one I have configured).

The issue with all existing Samsung profiles is that every video is shown as unplayable. Since they play via Generic, that's obviously not the case. I understand the profile settings within each transcoding section (the Video and Online sections), but the sections before Transcoding loses me.

So, here's the Device Spy info for this TV. There must be something different with this UHD TV compared to the standard HD H model.

  Code:

http-get:*:audio/L16:DLNA.ORG_PN=LPCM;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mpeg:DLNA.ORG_PN=MP3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_SM
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_MED
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_LRG
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_TN
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_SM_ICO
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_LRG_ICO
http-get:*:image/png:DLNA.ORG_PN=PNG_TN
http-get:*:image/png:DLNA.ORG_PN=PNG_SM_ICO
http-get:*:image/png:DLNA.ORG_PN=PNG_LRG_ICO
http-get:*:image/png:DLNA.ORG_PN=PNG_LRG
http-get:*:audio/vnd.dolby.dd-raw:DLNA.ORG_PN=AC3;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AMR_3GPP;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/3gpp:DLNA.ORG_PN=AMR_WBplus;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/x-sony-oma:DLNA.ORG_PN=ATRAC3plus;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mpeg:DLNA.ORG_PN=MP3X;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS_320;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO_320;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_LTP_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_LTP_MULT5_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_LTP_MULT7_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_MULT5_ADTS;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_MULT5_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L3_ADTS;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L3_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_MULT5_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS_320;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO_320;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=BSAC_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/mp4:DLNA.ORG_PN=BSAC_MULT5_ISO;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMABASE;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMAFULL;DLNA.ORG_FLAGS=8D100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG1;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_NTSC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_NTSC_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_PAL;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_PAL_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_NA_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_NA_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_NA;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_NA_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_HD_NA_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_EU_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_KO_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_KO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_KO_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_HD_KO_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_KO_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_KO_XAC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_HD_KO_XAC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_NA_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_HD_NA_XAC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_HD_NA_XAC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO_XAC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_KO_XAC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA_XAC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_NA_XAC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_MP_LL_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_MP_LL_AAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_MP_LL_AAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_ES_PAL;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_ES_NTSC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_ES_PAL_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_ES_NTSC_XAC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_ATRAC3plus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_L2_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_L2_AMR;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_AAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_SP_AAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG1_L3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG1_L3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_SP_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG2_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG2_L2_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_SP_MPEG2_L2_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-asf:DLNA.ORG_PN=MPEG4_P2_ASF_SP_G726;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_VGA_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_SP_VGA_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_HEAAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_ATRAC3plus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_MPEG1_L3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_ASP_MPEG1_L3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_ASP_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L5_SO_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L5_SO_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L5_SO_HEAAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-asf:DLNA.ORG_PN=MPEG4_P2_ASF_ASP_L5_SO_G726;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L4_SO_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L4_SO_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=MPEG4_P2_MP4_ASP_L4_SO_HEAAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-asf:DLNA.ORG_PN=MPEG4_P2_ASF_ASP_L4_SO_G726;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=MPEG4_H263_MP4_P0_L10_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=MPEG4_H263_3GPP_P0_L10_AMR_WBplus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_CO_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_CO_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_CO_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_CO_MPEG2_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG4_P2_TS_CO_MPEG2_L2_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG4_P2_TS_CO_MPEG2_L2_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=MPEG4_P2_3GPP_SP_L0B_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=MPEG4_P2_3GPP_SP_L0B_AMR;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=MPEG4_H263_3GPP_P3_L10_AMR;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_HEAAC_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_HEAAC_L2_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_HEAAC_L2_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_MPEG1_L3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_MPEG1_L3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT7;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT7_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_AAC_LTP_MULT7_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_BSAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_SD_BSAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_SD_BSAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_HEAAC_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_LTP_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_LTP_MULT7;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_ATRAC3plus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3L_SD_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3L_SD_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3_SD_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_BSAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_HEAAC_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_HEAAC_L2_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_HEAAC_L2_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_MPEG1_L3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_MPEG1_L3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_LTP_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_940;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_940_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF30_AAC_940_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_AAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_HEAAC_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_AAC_LTP_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L2_CIF30_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_BSAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_BSAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF30_AAC_940;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AMR;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_HEAAC_L2;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_HEAAC_L2_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_HEAAC_L2_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_MPEG1_L3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_MPEG1_L3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_MPEG1_L3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AC3_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT5;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT5_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT5_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT7;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT7_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_MP_HD_AAC_LTP_MULT7_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_540;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_540_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_540_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_LTP_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF15_AAC_LTP_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_BSAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_BL_CIF15_BSAC_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_BL_CIF15_BSAC_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_60_AC3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC_520;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC_LTP_520;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_BSAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L12_CIF15_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L1B_QCIF15_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_CIF30_AMR_WBplus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_CIF15_AMR_WBplus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_QCIF15_AAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_QCIF15_AAC_LTP;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_QCIF15_HEAAC;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_QCIF15_AMR_WBplus;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/3gpp:DLNA.ORG_PN=AVC_3GPP_BL_QCIF15_AMR;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVMED_BASE;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVMED_FULL;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVMED_PRO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVHIGH_FULL;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVHM_BASE;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPLL_BASE;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_BASE;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_MP3;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_60_AC3_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/mpeg:DLNA.ORG_PN=AVC_TS_NA_ISO;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_NA_T;DLNA.ORG_FLAGS=ED100000000000000000000000000000
http-get:*:text/xml:SEC.COM_DIDLSIMAGE=1;SEC.COM_DIDLSAUDIO=1;SEC.COM_DIDLSVIDEO=1
http-get:*:image/jpeg:*
http-get:*:image/png:*
http-get:*:image/bmp:*
http-get:*:image/mpo:*
http-get:*:audio/mpeg:*
http-get:*:audio/x-ms-wma:*
http-get:*:audio/mp4:*
http-get:*:audio/x-m4a:*
http-get:*:audio/3ga:*
http-get:*:audio/ogg:*
http-get:*:audio/x-wav:*
http-get:*:audio/x-flac:*
http-get:*:smi/caption:*
http-get:*:video/x-msvideo:*
http-get:*:video/x-ms-asf:*
http-get:*:video/x-divx:*
http-get:*:video/x-ms-wmv:*
http-get:*:video/x-mkv:*
http-get:*:video/mp4:*
http-get:*:video/x-avi:*
http-get:*:video/avi:*
http-get:*:video/x-flv:*
http-get:*:video/mpeg:*
http-get:*:video/3gpp:*
http-get:*:video/webm:*


[atc98092]

Still need some help, people (please!)

The Samsung H profile that was provided is working for most of my media, but it is not touching my WTV (Windows Recorded TV) files. It shows them in the lists, but they show zero size and when I attempt to play one I get an unsupported file error.

This line was in the H profile:

  Code:

<Matches container="wtv" vCodec="h264"/>

but of course most recorded TV is MPEG2 video, which the TV supports. If I remove the vCodec portion (to match every WTV file), no changes apparent. I've changed a number of settings, and it's almost like I haven't changed the profile at all.

I have a similar problem with M2TS files. I'm unsure how the TV recognizes this container. I've attached an image of what the owner's manual lists for file and codec support. Of course, the Device Spy info is listed above. I just don't know what it all means.

[DenyAll]

The Samsung H profile that was provided is working for most of my media

Can you post the profile or point to it. Does this profile fix the issue with a) the images of the movie art are distorted, b) DVD rips have some stutter to the video (audio is fine, as are Blu-Ray rips) and c) online sources will not play (Crackle is the only one I have configured).

Is it just wtv files now not working. If so, post MediaInfo for one of them.

I have a similar problem with M2TS files. I'm unsure how the TV recognizes this container.

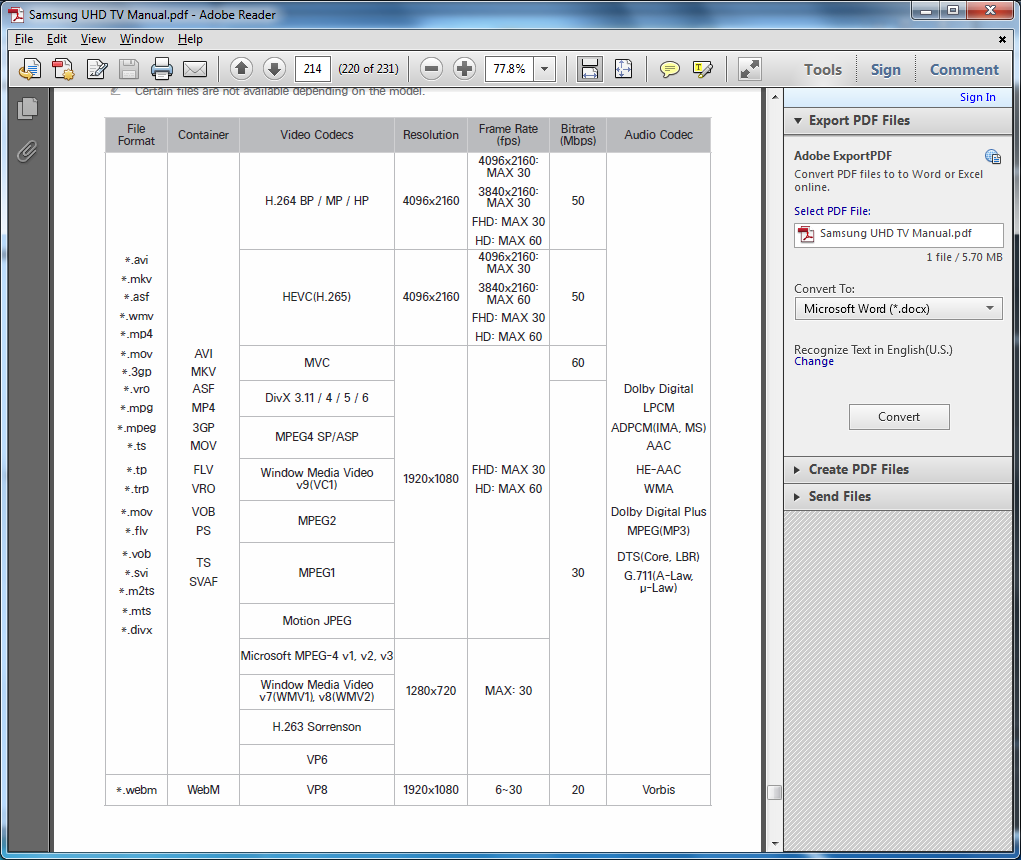

It supports them according to the image - what is the problem?

[atc98092]

Profile attached. The Samsung H profile is the last one in the file.
a) Yes, this fixes the distorted thumbnail images.
b) Any file with MPEG2 video codec stutters, regardless of container. I don't think this profile transcodes them. If I watch the same file from the same server, only using Windows Media Streaming instead of Serviio they still stutter. Any file with H.264 or VC-1 video codec plays perfectly.
c) Online (Crackle) plays fine.

WTV & WMV don't play. AVI plays. Here's a WTV example:

  Code:

General
Complete name                            : \\MEDIA-PC\Users\Public\Recorded TV\At The Earth's Core (1976).wtv
Format                                   : MPEG Video
Format version                           : Version 2
File size                                : 1.71 GiB
Duration                                 : 1h 27mn
Overall bit rate                         : 2 783 Kbps

Video
Format                                   : MPEG Video
Format version                           : Version 2
Format profile                           : Main@Main
Format settings, BVOP                    : Yes
Format settings, Matrix                  : Default
Format settings, GOP                     : M=3, N=12
Duration                                 : 1h 27mn
Bit rate                                 : 2 783 Kbps
Maximum bit rate                         : 2 385 Kbps
Width                                    : 720 pixels
Height                                   : 480 pixels
Display aspect ratio                     : 16:9
Frame rate                               : 29.970 fps
Standard                                 : NTSC
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Interlaced
Scan order                               : Top Field First
Compression mode                         : Lossy
Bits/(Pixel*Frame)                       : 0.269
Time code of first frame                 : 00:00:00;00
Stream size                              : 1.71 GiB (100%)
Color primaries                          : BT.601 PAL
Transfer characteristics                 : BT.470 System B, BT.470 System G
Matrix coefficients                      : BT.601


M2TS is hit or miss. This one plays:

  Code:

General
ID                                       : 0 (0x0)
Complete name                            : \\MEDIA-PC\Users\Media\Videos\Star Trek S01E27 - The Alternative Factor.m2ts
Format                                   : BDAV
Format/Info                              : Blu-ray Video
File size                                : 7.95 GiB
Duration                                 : 50mn 30s
Overall bit rate mode                    : Variable
Overall bit rate                         : 22.5 Mbps
Maximum Overall bit rate                 : 48.0 Mbps

Video
ID                                       : 4113 (0x1011)
Menu ID                                  : 1 (0x1)
Format                                   : VC-1
Format profile                           : Advanced@L3
Codec ID                                 : 234
Duration                                 : 50mn 30s
Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Frame rate                               : 23.976 fps
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Compression mode                         : Lossy

Audio #1
ID                                       : 4352 (0x1100)
Menu ID                                  : 1 (0x1)
Format                                   : DTS
Format/Info                              : Digital Theater Systems
Format profile                           : MA / Core
Mode                                     : 16
Format settings, Endianness              : Big
Muxing mode                              : Stream extension
Codec ID                                 : 134
Duration                                 : 50mn 30s
Bit rate mode                            : Variable
Bit rate                                 : Unknown / 768 Kbps
Channel(s)                               : 8 channels / 6 channels
Channel positions                        : Front: L C R, Side: L R, Back: L R, LFE / Front: L C R, Side: L R, LFE
Sampling rate                            : 48.0 KHz
Bit depth                                : 24 bits
Compression mode                         : Lossless / Lossy
Delay relative to video                  : -114ms

Audio #2
ID                                       : 4353 (0x1101)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 50mn 30s
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 2 channels
Channel positions                        : Front: L R
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Delay relative to video                  : -103ms
Stream size                              : 69.4 MiB (1%)

Audio #3
ID                                       : 4354 (0x1102)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 50mn 30s
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 2 channels
Channel positions                        : Front: L R
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Delay relative to video                  : -103ms
Stream size                              : 69.4 MiB (1%)

Audio #4
ID                                       : 4355 (0x1103)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 50mn 30s
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 2 channels
Channel positions                        : Front: L R
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Delay relative to video                  : -103ms
Stream size                              : 69.4 MiB (1%)

Text #1
ID                                       : 4608 (0x1200)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Delay relative to video                  : 1s 835ms

Text #2
ID                                       : 4609 (0x1201)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Delay relative to video                  : 1s 835ms

Text #3
ID                                       : 4610 (0x1202)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Delay relative to video                  : 1s 835ms

Text #4
ID                                       : 4611 (0x1203)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Delay relative to video                  : 1s 835ms


This one doesn't play:

  Code:

General
ID                                       : 0 (0x0)
Complete name                            : \\MEDIA-PC\Users\Media\Videos\Logan's Run (1976).m2ts
Format                                   : BDAV
Format/Info                              : Blu-ray Video
File size                                : 20.4 GiB
Duration                                 : 1h 58mn
Overall bit rate mode                    : Variable
Overall bit rate                         : 24.7 Mbps
Maximum Overall bit rate                 : 48.0 Mbps

Video
ID                                       : 4113 (0x1011)
Menu ID                                  : 1 (0x1)
Format                                   : VC-1
Format profile                           : Advanced@L3
Codec ID                                 : 234
Duration                                 : 1h 58mn
Bit rate                                 : 21.8 Mbps
Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Frame rate                               : 23.976 fps
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Compression mode                         : Lossy
Bits/(Pixel*Frame)                       : 0.439
Stream size                              : 18.1 GiB (88%)

Audio #1
ID                                       : 4352 (0x1100)
Menu ID                                  : 1 (0x1)
Format                                   : TrueHD / AC-3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Muxing mode                              : Stream extension
Codec ID                                 : 131
Duration                                 : 1h 58mn
Bit rate mode                            : Variable / Constant
Bit rate                                 : 640 Kbps
Maximum bit rate                         : 3 168 Kbps
Channel(s)                               : 6 channels
Channel positions                        : Front: L C R, Side: L R, LFE
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Stream size                              : 543 MiB (3%)

Audio #2
ID                                       : 4353 (0x1101)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 1h 58mn
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 1 channel
Channel positions                        : Front: C
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Stream size                              : 163 MiB (1%)

Audio #3
ID                                       : 4354 (0x1102)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 1h 58mn
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 1 channel
Channel positions                        : Front: C
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Stream size                              : 163 MiB (1%)

Audio #4
ID                                       : 4355 (0x1103)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 1h 58mn
Bit rate mode                            : Constant
Bit rate                                 : 640 Kbps
Channel(s)                               : 6 channels
Channel positions                        : Front: L C R, Side: L R, LFE
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Stream size                              : 543 MiB (3%)

Audio #5
ID                                       : 4356 (0x1104)
Menu ID                                  : 1 (0x1)
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Mode extension                           : CM (complete main)
Format settings, Endianness              : Big
Codec ID                                 : 129
Duration                                 : 1h 58mn
Bit rate mode                            : Constant
Bit rate                                 : 192 Kbps
Channel(s)                               : 1 channel
Channel positions                        : Front: C
Sampling rate                            : 48.0 KHz
Bit depth                                : 16 bits
Compression mode                         : Lossy
Stream size                              : 163 MiB (1%)

Text #1
ID                                       : 4608 (0x1200)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144

Text #2
ID                                       : 4609 (0x1201)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Duration                                 : 1h 58mn
Delay relative to video                  : 12s 679ms

Text #3
ID                                       : 4610 (0x1202)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Duration                                 : 1h 58mn
Delay relative to video                  : 12s 679ms

Text #4
ID                                       : 4611 (0x1203)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Delay relative to video                  : 12s 262ms

Text #5
ID                                       : 4612 (0x1204)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Duration                                 : 1h 58mn
Delay relative to video                  : 12s 721ms

Text #6
ID                                       : 4613 (0x1205)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Duration                                 : 1h 58mn
Delay relative to video                  : 12s 679ms

Text #7
ID                                       : 4614 (0x1206)
Menu ID                                  : 1 (0x1)
Format                                   : PGS
Codec ID                                 : 144
Duration                                 : 1h 58mn
Delay relative to video                  : 12s 679ms


I must not understand the Profiles format like I thought I did. I made a test file with only the Generic profile and this Samsung H profile. I then removed all video transcoding and only had one setting:

<Video targetContainer="mpegts" targetVCodec="h264" targetACodec="ac3" aBitrate="192" >
<Matches container="*" />
</Video>

Nothing would play with that setting. I changed h264 to mpeg2video and still every file said zero size and wouldn't play. I thought this would transcode everything to H264 video, which is one thing the TV plays perfectly. Even with debugging enabled in the log showed nothing. Like I wasn't even trying to play from that server. Except I was

FYI: I am doing all this on my test server, not my primary. The only difference between the two is CPU and number of hard drives. Same versions of Serviio, everything connected to my gigabit network via cat5.

[DenyAll]

Its going to be a matter of playing. Take a backup of your profile.

Try removing or commenting out all of this:

  Code:

         <!-- For dvr-ms files force mpeg2video transcoding to fix monotone timestamps problems-->
         <Video targetContainer="mpegts" targetACodec="ac3" forceVTranscoding="true" forceInheritance="true">
            <Matches container="asf" vCodec="mpeg2video"/>
            <Matches container="asf" vCodec="mpeg1video"/>
         </Video>
         <Video targetContainer="mpegts" forceInheritance="true">
            <Matches container="wtv"/>
         </Video>
         <!-- transcode wmv2-wmav2, not: wmv3-wmapro it works ok on E series-->
         <Video targetContainer="mpegts" targetVCodec="mpeg2video" targetACodec="ac3" forceInheritance="true">
            <Matches container="asf" vCodec="wmv2"/>
         </Video>

This is the part dealing with WTV and WMV (asf) files. See what happens - this is the no transcode case.
Then try adding (just after the last </Video> statement):

  Code:

<Video targetContainer="mpegts" targetVCodec="mpeg2video" forceVTranscoding="true" targetACodec="ac3" aBitrate="384">
      <Matches container="asf" />
      <Matches container="wtv" />
 </Video>

This is the full transcode case (both video and audio transcoded). Try it with and without the forceVTranscoding="true" bit. Unfortunately you haven't given me the full details of the WTV file (no audio details in the one above?) to go the next level if we need to.

For your mt2s files the thing that stands out is that the second file has TRUE HD audio. This may be the problem. Try transcoding it, or changing the order of your audio tracks so that AC3 is the first track. To transcode it try changing the line:

<Matches container="mpegts" vCodec="h264" aCodec="truehd"/>

removing the bit in red. As always, restart the Serviio service (or your PC) after making any changes to your profile.xml file.

[atc98092]

I'll give this a try when I get home.

I noticed the audio wasn't listed in the MediaInfo grab. Strange, because there is audio. It should be AC3, since that's the audio standard for US broadcast TV.

Thanks!

[atc98092]

Here's the FFMPEG info from the same file. I have no idea why MediaInfo didn't show audio, but that's what I got from any WTV file I tried. I was right, it is AC3 audio. The channel I recorded this from is a sub-channel to the main TV channel. As such, I don't think they send 5.1 audio out. They certainly don't send the video 16x9, even if the video itself is widescreen. It gets picture-boxed instead. Boo, hiss...

  Code:

F:\Recorded TV>ffmpeg -i "at the earth's core (1976).wtv"
ffmpeg version N-54096-ge41bf19 Copyright (c) 2000-2013 the FFmpeg developers
  built on Jun 18 2013 10:49:28 with gcc 4.7.2 (GCC)
  configuration: --enable-static --disable-shared --disable-ffplay --disable-ffserver --enable-memal
ign-hack --enable-libmp3lame --enable-libass --enable-librtmp --enable-fontconfig --enable-libfreety
pe --enable-zlib --enable-libx264 --extra-libs='-lrtmp -lpolarssl -lws2_32 -lwinmm -lexpat -lfreetyp
e -lfribidi -lz' --arch=x86 --enable-runtime-cpudetect --enable-pthreads --target-os=mingw32 --cross
-prefix=i686-w64-mingw32- --enable-gpl --pkg-config=pkg-config
  libavutil      52. 37.101 / 52. 37.101
  libavcodec     55. 16.100 / 55. 16.100
  libavformat    55.  9.100 / 55.  9.100
  libavdevice    55.  2.100 / 55.  2.100
  libavfilter     3. 77.101 /  3. 77.101
  libswscale      2.  3.100 /  2.  3.100
  libswresample   0. 17.102 /  0. 17.102
  libpostproc    52.  3.100 / 52.  3.100
[wtv @ 0035E580] truncated file
    Last message repeated 3 times
[wtv @ 0035E580] unknown media type, mediatype:80ea0a67823ad011b79b00aa003767a7, subtype:224a8d6e0c3
1d011b79a00aa003767a7, formattype:d617640f18c3d011a43f00a0c9223196
Input #0, wtv, from 'at the earth's core (1976).wtv':
  Metadata:
    WM/MediaClassPrimaryID: db9830bd-3ab3-4fab-8a371a995f7ff74
    WM/MediaClassSecondaryID: ba7f258a-62f7-47a9-b21f4651c42a000
    Title           : At the Earth's Core
    WM/SubTitleDescription: Victorian explorers (Doug McClure, Peter Cushing) burrow to Pellucidar,
where mutant Sagoths rule the Wing People.
    genre           : General;Movies;Sci-Fi/Fantasy;Fantasy
    WM/OriginalReleaseTime: 1976
    WM/MediaCredits : Doug McClure/Peter Cushing/Caroline Munro/Cy Grant/Godfrey James/Sean Lynch/Ke
ith Barron/Helen Gill/Anthony Verner/Robert Gillespie/Michael Crane/Bobby Parr/Andee Cromarty;Kevin
Connor;;
    service_provider: KOMODT2
    service_name    : KOMODT2 (KOMO-DT2)
    WM/MediaNetworkAffiliation: Independent
    WM/MediaOriginalChannel: 4
    WM/MediaOriginalChannelSubNumber: 2
    WM/MediaOriginalBroadcastDateTime: 0001-01-01T00:00:00Z
    WM/MediaIsStereo: false
    WM/MediaIsRepeat: false
    WM/MediaIsLive  : false
    WM/MediaIsTape  : false
    WM/MediaIsDelay : false
    WM/MediaIsSubtitled: false
    WM/MediaIsMovie : true
    WM/MediaIsPremiere: false
    WM/MediaIsFinale: false
    WM/MediaIsSAP   : false
    WM/MediaIsSport : false
    WM/ParentalRating: **+;PG;TV-PG
    WM/ParentalRatingReason: Adult Situations;Violence
    WM/Provider     : MediaCenterDefault
    WM/ProviderRating: **+
    WM/VideoClosedCaptioning: false
    WM/WMRVEncodeTime: 2011-04-21 21:59:03
    WM/WMRVServiceID: !MCService!214589384
    WM/WMRVRequestID: -1
    WM/WMRVScheduleItemID: -1
    WM/WMRVQuality  : 3
    WM/WMRVOriginalSoftPrePadding: 0
    WM/WMRVOriginalSoftPostPadding: 0
    WM/WMRVHardPrePadding: -300
    WM/WMRVHardPostPadding: 0
    WM/WMRVATSCContent: true
    WM/WMRVDTVContent: true
    WM/WMRVHDContent: false
    WM/MediaOriginalRunTime: 52689301334
    WM/MediaThumbWidth: 352
    WM/MediaThumbHeight: 234
    WM/MediaThumbStride: 1056
    WM/MediaThumbRet: 0
    WM/MediaThumbRatingSystem: 255
    WM/MediaThumbRatingLevel: 255
    WM/MediaThumbRatingAttributes: 0
    WM/MediaThumbAspectRatioX: 16
    WM/MediaThumbAspectRatioY: 9
    WM/MediaThumbTimeStamp: 4641301931177504108
    Duration        : 52689301334
    WM/WMRVEndTime  : 2011-04-21 23:26:52
    WM/WMRVBitrate  : 2.782972
    WM/WMRVKeepUntil: -1
    WM/WMRVActualSoftPrePadding: 300
    WM/WMRVActualSoftPostPadding: 0
    WM/WMRVContentProtected: false
    WM/WMRVContentProtectedPercent: 0
    WM/WMRVExpirationSpan: 9223372036854775807
    WM/WMRVInBandRatingSystem: 255
    WM/WMRVInBandRatingLevel: 255
    WM/WMRVInBandRatingAttributes: 0
    WM/WMRVWatched  : true
  Duration: 01:27:48.73, start: 0.200000, bitrate: 2783 kb/s
    Stream #0:0[0x5]: Video: mpeg2video (Main), yuv420p, 720x480 [SAR 32:27 DAR 16:9], 29.97 fps, 29
.97 tbr, 10000k tbn, 59.94 tbc
    Stream #0:1[0x7]: Audio: ac3, 48000 Hz, stereo, fltp, 256 kb/s
At least one output file must be specified


[atc98092]

Made the changes you listed above. WTV still shows zero size and won't play.

I am suspicious that this TV has a defect in its processor. It should play MPEG2 video perfectly, and it doesn't. I would think it would have a more difficult time playing HD MKV or M2TS files, but practically all of them play perfectly. They list this TV as a quad core processor. Should have plenty of power.

According to their documentation is should play almost everything without transcoding. Doesn't seem to be the case.

The one thing I never considered when I purchased it was the loss of HD audio. I should have thought of it, but just didn't process in my brain. Completely forgot that optical audio connections can't carry them, and I've researched HDMI ARC and it won't pass the bitstream back either. My Sony BD player would send the bitstream to my receiver. It might if is is LPCM, but that means transcoding everything. I may just get a new BluRay player and let it be my streaming player. Using the TV for Netflix and Amazon is fine, since they both top out audio at DD+. Plus I can stream the 4K videos that are available if I use the TV. I should probably wait to seen how long before a 4K BD player is available.

[atc98092]

Here's something interesting. Using the standard H profile (none of the above edits) on my normal server, WTV files are playing fine. It's only on my test server (running the latest Serviio beta) that the WTV files won't play. Going to dig into the test server some more. I may uninstall Serviio and perform a clean install to see if anything changes. I've enabled debug logging, and the debug stuff isn't showing up. Makes me think something else might be a little screwy. I changed to debug before I installed the beta, so I don't believe that was the issue.
